Dimension(mm)

3370*1250*1800

Chassis

Unibody Type

Battery

72V 160Ah /200Ah LiFeO4 type

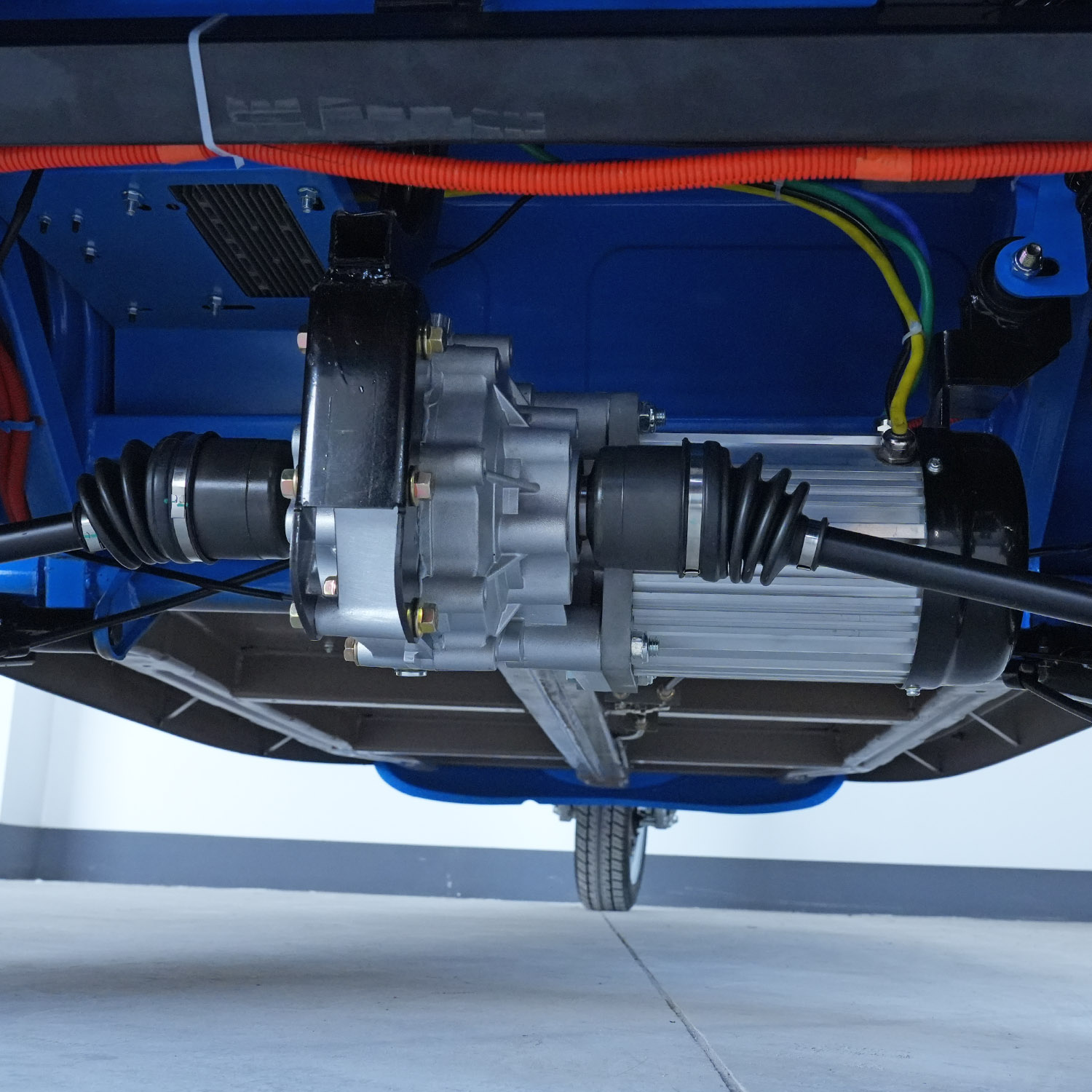

Motor Power

72v 4KW/5KW

Controller

Automotive-grade

Charger

an external 20A charger,8hours

Brake F/R

Drum-Type hydraulic brake

Headlight/Rearlight

LED

Speedometer

Liquid crystal

Ground Distance

180mm

Climbing Angles

25%（14°）

Load Capacity

5-7 Passengers

Tyre

125/65-12 Tubeless

G.W(WT battery)

395kgs

Max Speed

50km/h

Max Range

130km-150km-180km

Package Size (mm)

2850*1250*750

Container QTY

SKD 40HC 25pcs

Optional Choice

Luggage Rack. Side Door ,Spare Tire
